Fedjetting CNC waterjet cutter automatic system delivers steady high precision for car interior parts. Running at 60,000 PSI, it uses cold cutting to work with leather, composite, plastic and fiber materials, ideal for daily auto part production lines.
Automated Waterjet Cutting — A Practical Choice for Automotive Interior Production
Today’s car makers keep raising standards for interior parts. Lightweight build, mixed raw materials and intricate part shapes have become common across the industry. Old cutting methods like thermal cutting and manual trimming can no longer keep up. They often leave burnt edges, warped surfaces or rough cuts, which ruin the look and fit of interior pieces.

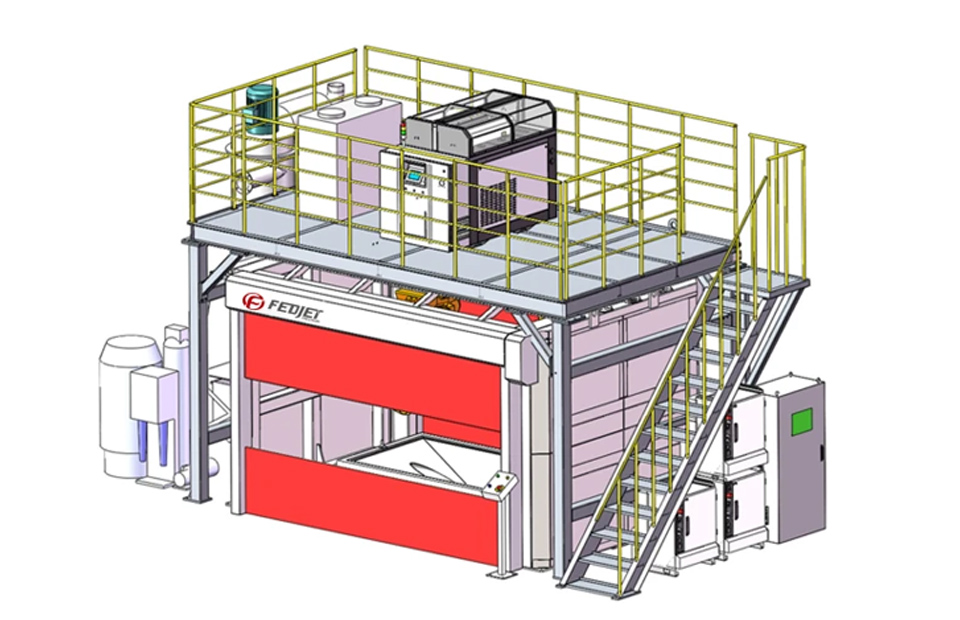

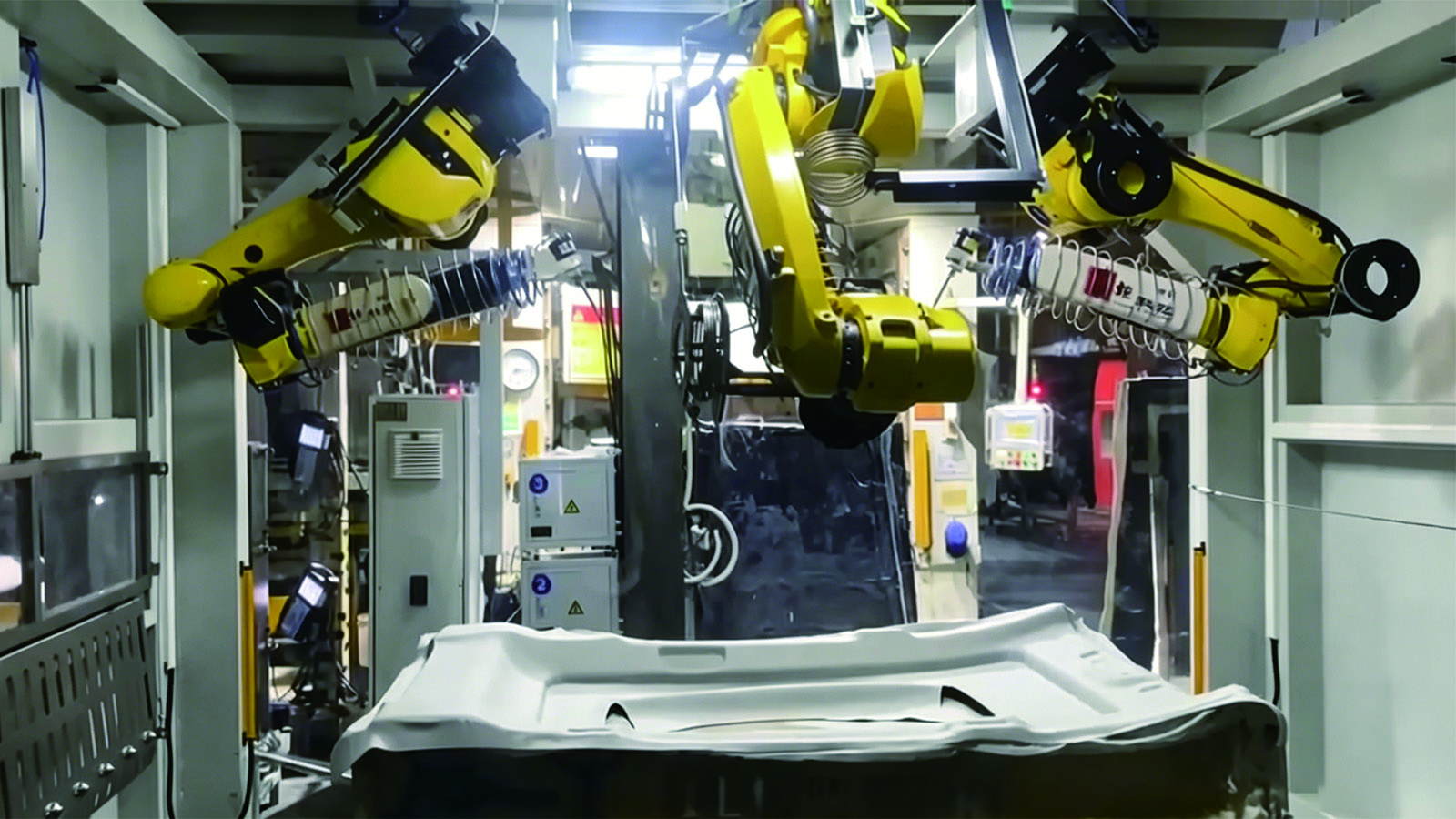

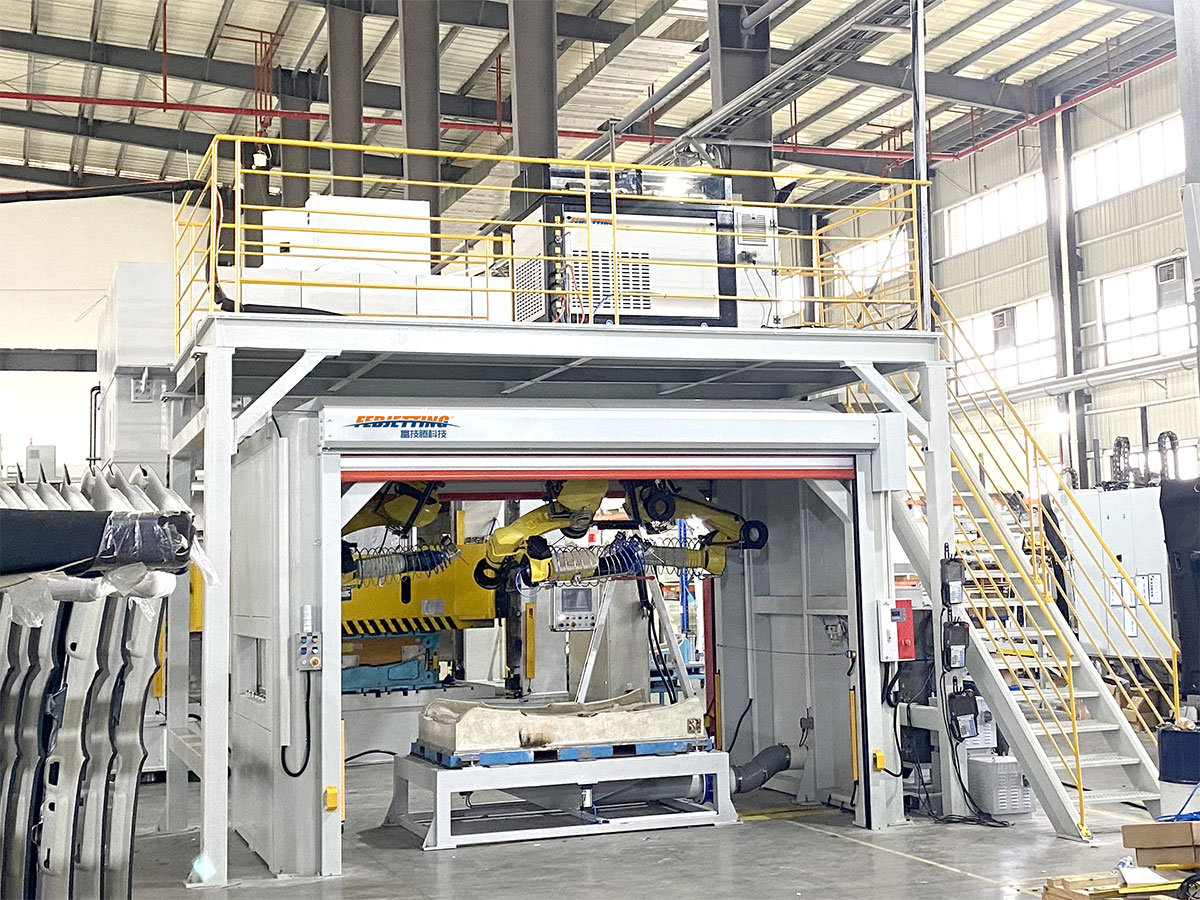

FEDJET robotic waterjet cutting machine is built to solve these real workshop problems. Combining automatic operation, multi-axis movement and cold cutting technology, this equipment serves car interior factories in over 135 regions around the world. It handles door trims, dashboards, roof liners, seat parts and decorative fittings with ease, bringing stable quality and higher output to daily production work.
Core Strengths for Car Interior Processing
1. Cold Cutting Keeps Materials Intact
Most car interior pieces use leather, fabric, foam, rubber, plastic and layered composite boards. Any cutting method that creates high heat will scorch surfaces, peel layered materials or leave permanent deformation.
This waterjet device uses two working modes: pure water cutting and abrasive water cutting. It works entirely without heat during the whole process. Materials stay in their original state, with no cracks, discoloration or warping. Finished parts have clean edges, so workers can skip extra trimming and polishing steps, and cut down overall production spending.
2. Solid Precision for Complex Shapes
Car interior parts come with curved lines, angled edges and hollow designs, which call for strict cutting accuracy. Built with heavy-duty robotic frame and practical control system, the machine delivers reliable running accuracy:
- Linear accuracy: ±0.02mm per meter
- Repeat positioning accuracy: ±0.02mm
- Top moving speed: 20,000 mm per minute
The optionalcutting head can tilt within ±10 degrees. It offsets the slight angle formed by water flow, and creates straight cuts on thick materials as well as neat bevel edges. For curved and irregular interior parts, it maintains the same good quality in batch production all the time.
3. Full Automatic Operation Boosts Output
Designed for large-volume production, the whole system can run automatically from start to finish. It reads common design file formats directly. Workers only need to import drawings, then the machine finishes route planning, cutting and material separation on its own.
Matched with a large-capacity abrasive feeder and automatic waste sand removal unit, the machine can work non-stop for 8 hours or longer without frequent pauses. It runs steadily around the clock. Compared with manual and semi-automatic tools, it greatly lifts workshop efficiency and fits well with busy production schedules.
4. Wide Range of Compatible Materials
One single machine can process nearly all raw materials used for car interiors, which simplifies workshop layout and equipment arrangement.
- Soft materials: Car leather, woven cloth, soundproof cotton, rubber and thin plastic sheets (uses pure water cutting)
- Hard and composite materials: Carbon fiber panels, glass fiber parts, thin aluminum sheets and decorative ceramics (uses abrasive water cutting)
The maximum cutting depth reaches 200mm, covering thin surface materials and thick structural parts for vehicle interiors.
Main Technical Specifications
| Item |
Parameters |
| Working Axes |
Standard 3-axis (X/Y/Z); Optional 5-axis (5A-Taper10 / 5A-Rotary60) |
| X-axis Travel |
2500mm / 3000mm / 3300mm / 4000mm; Custom range: 1.5m - 5.0m |
| Y-axis Travel |
1500mm / 2000mm / 3000mm; Custom range: 1.5m - 20m |
| Z-axis Travel |
150mm / 200mm; Custom range: 150mm - 500mm |
| Maximum Working Pressure |
60,000 PSI (413 MPa) |
| Linear Accuracy |
±0.02mm/m |
| Repeatability |
±0.02mm |
| Maximum Rapid Traverse Speed |
20,000 mm/min |
| Cutting Mode |
Pure Waterjet / Abrasive Waterjet |
| Pump Power |
37KW (50HP) |
| Control System |
i-Telli Touch Control System |
| Power Supply |
380V/415V, 3-Phase, 50/60Hz (Adjustable) |
| Certifications |
CE, SGS, ISO 9001:2000 |
Custom Settings for Car Interior Production Lines
We adjust the machine setup to match different workshop spaces and processing needs:
- Adjustable Working Range: Change X, Y, Z axis travel to fit large parts such as car roof liners and full door panels, as well as small decorative accessories.
- Fully Enclosed Body: The closed structure cuts down running noise by 30-40 decibels and stops abrasive splashing. It protects workshop environment and nearby equipment from corrosion.
- Supporting Auxiliary Units: Equip with water treatment device, abrasive flow regulator and temperature control unit. These parts extend the service life of nozzles, seals and key components, and lower long-term maintenance costs.
- Visual Positioning Module: The optional vision system locates leftover materials accurately, so factories can make better use of raw materials and reduce waste.
Common Application Scenarios
- Door and Window Trims: Cut leather wraps, plastic strips and soundproof parts with smooth, burr-free edges.
- Dashboard and Central Console: Process layered composite boards and curved pieces to guarantee perfect assembly.
- Roof Liners and Sun Visors: Cut large fabric and foam materials without stretching or surface damage.
- Seat Parts and Floor Mats: Produce irregular leather, rubber and carpet pieces in large quantities with steady quality.
- Lightweight Parts for New Energy Vehicles: Cut carbon fiber and high-strength plastic components to meet lightweight design demands.
Why Choose FEDJET Waterjet Equipment
- In-house R&D and Production: Founded in 2012, our team develops and builds high-pressure pumps on our own. The service interval is 30% longer than ordinary assembled machines, ensuring stable long-term operation.
- Complete After-sales Service: We provide remote fault checking, on-site installation and skill training. Professional local teams stand by to shorten downtime for production lines.
- All-round Service Support: From equipment selection and custom modification to material trial cutting and process debugging, we offer full support for every production stage.
- Authorized Quality Certificates: All machines pass CE, SGS and other international tests, meeting European machinery and electromagnetic compatibility standards for global delivery.
As the automotive industry keeps upgrading, automated waterjet cutting has become a reliable choice for interior part production. FEDJET PowerJet robotic waterjet machine stands out for steady precision, full automatic running, broad material adaptability and reasonable running cost. It solves many practical troubles brought by old cutting methods.
No matter for small-batch customized work or large-scale assembly line production, this equipment helps car interior factories gain better product quality, higher output and lower overall cost. For manufacturers looking for dependable processing tools, FEDJET automated waterjet cutting system is a solid long-term pick.
